ECU differences JDM EDM USDM

Posted by shoum at 8:45 PM
Labels: , , , ,
Honda ECU definition codes


These id codes are the last 3 digits printed directly on the MCU after the model number (e.g. M66207-251 - the "251" portion will be a much larger font). This code indicates the ECU program that is burned into the internal ROM of the MCU.ECUs with factory external EPROMs will not always have a code printed on the MCU if they do not have any internalROM storage, as indicated by the "X" in their part number (e.g. M66X207) ROMs for many of these are available, but if you have one not there, please post it up! You can upload bins using the "Attach" feature of this page. If you cant figure out the table, just add a written entry (or attachment) to the end of this and someone will incorporate it into the table for you.




The label on the ECU can often tell you a lot about it. See Label Decode for more information.


Note: Exactly 8 vertical bars on a line or you fook up the formatting :)













































































































































































OBDIDMarketECUCar/Enginenotesbin
OBD2 A??USDM(Auto)P0J-L611997 Accord
OBD1??JDM (Auto)P0A-9021994-1995 Accord F22BNot Chippable
OBD1A6JDMP13-J00/J5093-95 Prelude H22A(4 plug => ABS)bin
OBD2 B??EDMPDE-E01Accord Type - R H22A71999 2.2L 16V DOHC VTEC, 212HP, EDM
OBD1A8Oz DMP14-Q0093-95 Prelude Si H23A4WSbin
OBD1A9USDMP12-A00Prelude S F22Abin
OBD2 KA61Oz DMPLR-Q71Civic66q591 KS, PA, immo?
OBD1B9JDMP39-N5092-96 Prelude F22B DOHC66911bin
OBD1C0Oz DMP14-Q0093-95 Prelude Si H23Abin
OBD1C1?P12-A00?bin
OBD1C2USDMP13-A10/A1192-95 H22A Preludestock ROMbin
OBD1C8USDMP14-A1192-95 H23A Preludestock ROMbin
OBD1D2JDMPT6-J50Accordbin
OBD1D5Oz DMP0A-Q00/Q5094-95 Accord Ex66911bin
OBD1D8Oz DMP0C-Q00Accord Exi F22B66911bin
OBD1E4Oz DMP14-Q5293-95 Prelude Si H23Abin
OBD1E6JDMP13-N0193-95 Prelude H22Abin
OBD1F6Oz DMP39-N0192-95 AccordSOHC VTEC66911bin
OBD1L3Oz DMP0C-Q10Accord Exi F22B66911, immobin
OBD1S40JDMP0F-902Accord 95 CB5 H22aHitachi
OBD010JDMPK2-0133Prelude 90-91bin
OBD012Oz DMPK2-6214Prelude 88-89bin
OBD019USDMPK2-6640Prelude 88-89 Canadianbin
OBD021JDMPH3-0732Accord 88-89 B20Abin
OBD027Oz DMPK2-6220Prelude 90-91bin
OBD033Oz DMPR4-Q5188-89 Integra LS/GS B18abin
OBD045JDMPM7-E04CRX 88-89
OBD050JDM/EDMPM7-9040/0330CRX Si 89-bin
OBD051JDMPK2Prelude 90-91bin
OBD052USDMPJ0-L02288-89 Accord LX-i Cali Emissionsbin
OBD053USDMPK2-6660Prelude 90-91bin
OBD054Oz DMPR4-Q0290-91 Integra LS/GS B18abin
OBD0??USDMPR4-A0290 Integra LS B18abin
OBD058JDMPR3-90189-91 B16A EF8/9bin
OBD059JDMPR5-00390-91 Integra ZXi (1.6 sohc)bin
OBD065USDM/CDMPM6-A09/C00CRX 90-91bin
OBD071JDMPW0-000CRX SiR 89-91bin
OBD076EDMPW0-X00CRX SiR 89-91bin
OBD076EDMPW0-E00CIVIC 89-91bin
OBD079EDMPm7-000CRX 90-91bin
OBD183Oz DMPT3-Q50Accordbin
OBD092Oz DMPR4-Q6090-91 Integra LS/GS B18abin
OBD093JDMPR3-J00/90089-91 B16A DA6bin
OBD197Oz DMPT6-Q50Accordbin
OBD2 B111USDMP73-A04ITRknock, immobilizer, PA sensor PCB: A3Y-B 001AC-L5002-00
OBD2 B117Oz DMPCX-???????
OBD0120JDMPM7-Q020CRX 88-89
OBD0121EDMPM7-E020CRX 88-89bin
OBD1202JDMP29-900/000Civic D16A ZCDOHCOBD1 ZCbin
OBD1203JDMP30-?Civic B16ADOHC Vteccommon dev rombin
OBD1204JDMP54-900Domani B18BDOHC
OBD1205JDMPR3-J0192-93 Integra XSi B16Ano inj test, no PA, yes knockbin
OBD1206JDMP08-020D15B SOHCVtec
OBD1208EDMP28-G00/G50Civic D16Z6SOHC VTecbin
OBD1209EDMP30-G00Civic B16A2DOHC Vtecno PA, no knock, no ELDbin
OBD1210?
OBD1211USDMP07Civic VX D15Z1 Sohc Vtec-E5wire o2, 02D011F0-1500 and 02D01720-1500 chipable, 02D01560-1500 not (yet)
OBD1214USDMP74Integra B18bin
OBD1215USDMP61Integra B17ADOHC Vtecbin
OBD0216USDMPM5/PM9D15B DPFIonly 90-91
OBD1218JDMP07-G01Civic SOHCVtec-E 1500complement to "252" proc - Wideband?bin
OBD1219JDMPR3-J5192-93 Integra XSi B16Ano inj test, no PA, yes knockbin
OBD1223JDMP27-T50SOHC
OBD1224JDMP07-T50SOHC Vtec-E
OBD1224EDM?P29DOHC D16A9by ELFbin
OBD1225JDMP07SOHC Vtec-E
OBD1229USDMP06Civic DX D15BSOHCauto
OBD0230USDMPM5Civic DX66201 proc
OBD1230USDMP28-A00D16Z6 SOHCmanual, 66207 procbin
OBD1231USDMP05Civic CX D15B8SOHC1 wire O2 linkbin
OBD1232USDMP75Integra B18B GS DOHC(Also PR4)bin
OBD1233USDMPR4-A6192-93 USDMintegra B18(??)Auto, with EGR!!!bin
OBD1???USDMPR4-A11Integra B18A GS DOHCB18 non-vtec 5spd
OBD1235Oz DMPR4-Q61Integra B18A GS DOHCbin
OBD1236BrazilP30-G00EG6 B16A2DOHC Vtec
OBD1237JDMP08-001D15B SOHCVtecbin
OBD1238EDMP04-G00D15B2 SOHC
OBD1240JDMP30-J00Civic B16ADOHC Vtec(square ECU) Usually already ready for a chipbin
OBD1243JDMP08-010/911D15B SOHCVtecbin
OBD1244Oz DMP29-Q01Civic D16A ZCDOHCOBD1 ZCbin
OBD1245JDMP30-010Civic B16ADOHC Vtec(square ECU) Not ready for a chip. You need to get the small Resistors and the small 74HC373 (good luck finding one)bin
OBD1246JDMP30-901ECU B16 DOHCVtecauto
OBD1248USDMP09-A00Civic DX D15B7SOHC
OBD1248USDMP09-L00Civic CX D15B8SOHC1 wire o2(same as P05)
OBD1248USDMP05-L01Civic CX D15B7SOHC1 wire o2bin
OBD1249USDMP05Civic D16B7SOHC1wire o2bin
OBD1251USDMP28-A51/L5192-95 Civic EX D16Z6 SOHCVtecautobin
OBD1252JDMP07-G01Civic SOHCVtec-E 1500(2nd CPU)bin
OBD1253JDMP91-900Civic EJ1 Coupe D16Z SOHCVtecbin
OBD1254EDMP28-G01/G51Civic SOHCD16Z6 Vtec
OBD1259JDMP70-900ZC VtecATbin
OBD1262JDMP07-900Civic SOHCVtec-E 1500autobin
OBD1269JDMP72-?Integra B18C4DOHC Vtecbin
OBD1270JDMP75-?Integra Integra B18B Esi DOHCbin
OBD1273USDMP72-?Integra B18C1-3 DOHC Vtecbin
OBD1274USDMP75-?Integra B18B LSDOHCbin
OBD1283JDMP08-N01D15B SOHCVtecbinext
OBD1300USDMP05Civic CX SOHCD15 (94-95)
OBD2 A301USDMP2N-A3196-98 Civic HXSecond processor - 66201
OBD1301USDM/CDNP06-A02Civic DX D15B7SOHCbin
OBD1303USDMP07Civic VX D15Z1SOHC Vtecbin
OBD1304USDMP28-A0192-95 Civic EX D16Z SOHCVtecmanualbin
OBD1305USDMP30-A02Civic/Delsol B16A DOHCVtecManualbin
OBD1306JDMP08-N01D15B SOHC vtec
OBD1309JDMP91-90192-95 Civic Coupe (sohc vtec 1.6)
OBD1312JDMP30-901Civic B16ADOHC Vtec Automatic
OBD1314Oz DMP06-Q00/Q50Civic D15BSOHCbin
OBD1315Oz DMP28-Q50Civic D16Z?SOHC Vtecbin
OBD1317EDMP28-G02Delsol D16Z6SOHC Vtec94bin
OBD1318JDM/ExportP30G-?Civic B16ADOHC Vtecbin
OBD2 A320Oz DMP2P-Q0196-98 Civic Ex D16Y8MT, 66507, board M1Y-C 014T-L5000-01 1st gen immo, KS, no PA
OBD1321EDMP29-T01Civic 92-95ZC engine Without O2bin
OBD1327US/JDMP28-?Civic D16ZSOHC Vtecauto w/dataloggingbin
OBD2 A328CanadaP2P-A31Civic EX 96-9866507, L5000-01, PA, no immobin
OBD1332USDMP75-?Integra B18B GS DOHCbin
OBD2 A338USDMP72-???Integra B18C1MT, 66507, ???bin
OBD2 A339JDMP72-013Integra B18CMT, 66507, board M1Y-C 014T-L5000-01 KS, no PA
OBD2 A340USDMP75-???Integra B18B ????bin
OBD2 A341Oz DMP75-Q02Integra GS B18BMT, 66507, board M1Y-C 014T-L5000-01 no PA, no immo, no KS
OBD2 A357Oz DMP72-Q13Integra B18CMT, 66507, board M1Y-C 014T-L5000-01 immo, KS, no PA
OBD2 A359JDMP73-003ITR B18C5MT, 66507, no immo, no PA, knockbin
OBD2 A361JDMP2T-J9199-00 Civic Si B16A3MT, 66507, board M1Y-C 014T-L5000-01 no PA, no immo, KS
OBD2 A365EDMP2T-G0196-99 Euro Civic VTI EK4MT, PCB Denshigiken : M1Y-C 0014T-L5000-11, no PA sensor, Knock module, Immo modulebin
OBD2 A388Oz DMP2M-Q6198 Civic D16YAT, 66507 M1Y-C 014T-L5000-11 no PA, immo, KS
OBD2 A409USDM??????????bin
OBD2 A422USDM?P72 ?????????bin
OBD2?471USDM????Civic HX??bin
OBD2?474USDM????Integra ??????bin
OBD2?475USDM?P75???Integra LS ??????bin
OBD2 A484Oz DMP2M-Q0198 Civic D16YMT, 66507 M1Y-C 014T-L5000-01 no PA, immo, KS
OBD2 A493USDMP2P-A3396-98 Civic Ex D16Y8MT, 66507, board M1Y-C 014T-L5000-01 Has provision for immobilizer but not present
OBD2?497USDMP73 ???USDM ITR ??????bin
OBD2 A498EDMP3F-G01CR-V 97-98 B20B4MT,66507, board M1Y-C 014T-L5000-01 no PA, immo?, KS?
OBD2 K505Oz DMPRB-Q012001+ ITR DC5(aka RSX USA)
OBD2 K515Oz DMPND-Q51Integra66592 PA
OBD2 A526Oz DMP5M-Q01/Q5197-01 Prelude H22aMT/AT, 66p509, board E2Y-B 0014F-L5000-0, KS, immo, PA
OBD2 A083EDMP5M-G6197-01 Prelude H22aAT, M66509 @ 31 MHz, board E2Y-B 0014F-L5000-0, KS, immo, PA
OBD2 A527Oz DMP5L-Q5197-01 PreludeMT/AT, 66p509, board E2Y-B 0014F-L5000-0, immo, PA
OBD2 K669USDMPAA-A06CRV ??? ???66Q592, immo?
OBD2 K686Oz DMPPA-Q53CRV 2002 K2466Q592 PA, immo?
OBD2 A700Oz DMP3F-Q01?MT, 66507, board M1Y-C 014T-L5000-01 no PA, immo, no KS
OBD2 A711USDMP2N-A3196-98 Civic HXmain processor - 66507 PCB: L1Y-D 0012B-L5001-00
OBD2 A712USDMP72-???????bin
OBD0713Oz DMPP4-Q51088-89 ConcertoAT
OBD2 A713JDMP73-023ITR B18C5MT, 66507, no immo, no PA
OBD2 A714USDMP73-???ITR B18C5MT, 66507, ..
OBD2 A715EDMP73-G01ITR B18C6MT, 66507, board M1Y-C 014T-L5000-01 no PA, immo, KSbin
OBD0717Oz DMPP4-Q02088-89 Concerto
OBD2 A719USDMP2P-A3498 Civic D16Y866507, M1Y-C 0014T-L5000-21, PA, no immo
OBD0721EDMPm7-000CRX 89bin
OBD2 A796Oz DMP73-Q01ITR B18C7MT, 66507, board M1Y-C 014T-L5000-01 no PA, immo, KS
OBD2 A836Oz DMPEA-Q50Odessey 96 F22BKS, PA, 2nd gen immo
OBD2 B858JDMPCT-J1197-01 Civic EK9 CTRKS, no PA, no immo
OBD2 B866Oz DMP2T-Q1299-00 Civic Si B16A3MT, 66589, board M2Y-D 0016Z-L5004-A0 2nd gen immo, KS, no PA
OBD2 B933USDMP2T-A1199-00 Civic Si B16A3MT, 66589, board M2Y-D 0016Z-L5004-A0 Provision for immobilizer?binmugen
OBD1952Oz DMP75-Q5195 Integra B18AAT NEC B5J-D 2D190-1501
OBD1?USDMP28-L5092-95 Civic D16Z6 SOHCVtecAT, 66207, 02D01720-1500, California, actually P30 code (!)bin
??Oz DMP2K-Q0196 Civic EK1 GLiSOHC non-VTEC (D16Y4)Manual, denshigiken brand
OBD1B4JDMP51-90092 Ascot Innova 2,3Si-Z H23ADOHC66911bin
OBD1JDMP30-90091 EG9 Civic Ferio Sir B16A AT (155 hp 15,6 kg*m)This dump was in an external ROM of the stock P30-900 ECU.bin
OBD1JDMP30-90192 EG6 Civic Sir B16A AT (155 hp 15,6 kg*m)This dump was in an internal ROM of the stock P30-901ECU. But Crome opens it as a P28 Based... This ECUdoesnt have ELD.bin
OBD1JDMP30-95092 EG2 CRX Del-Sol Sir B16A MT (170 hp 16 kg*m)This dump was in an external ROM of the stock P30-950 ECU. You can upgrade your second generation B16A (CR is 10,4:1) with tables of this dump up to 170 hp and 16 kg*m.bin
OBD1USDMP30-A1094-95 Del-Sol B16AAutomatic
OBD2 A308?USDMP2E-L0196 Civic DX D16Y75 speed, 3 wire IAC
OBD2 AUSDMP28-A5496 Del Sol D16y? VTECBoard #M1Y-C 0014T-L5000-01, Number under P28 number, 957-201622-2G04
OBD2 B425UKDMP9K-E1197-00 MB6 Civic VTI DOHC VTEC B18C4 (169hp)MCU code - M66507-425, MCU dump needed!!

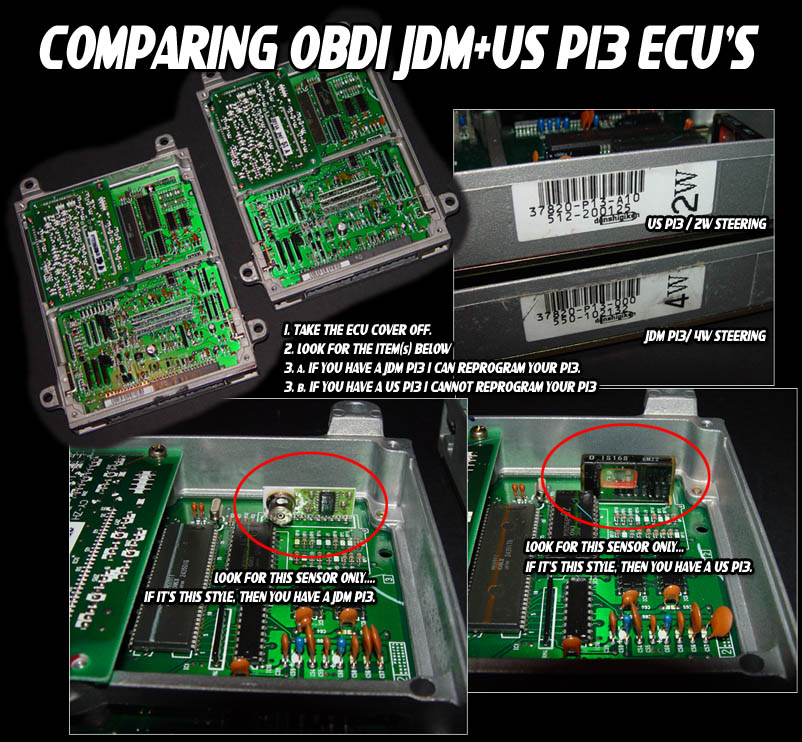

Another way is to look for a sensor inside the ECU itself..







Source - pgm-fi.org preludepower.com
